Given a barometer with a Macclesfield signature, and a desire to find out more,
where should one start? Arguably with the work of the late Edwin Banfield who catalogued far more makers and retailers
than the previous published expert in the field, Nicholas Goodison. It is great pity that he rarely gave any actual citations,
but we know from his prefaces that he used auction catalogues, contacts with dealers, trade directories and newspapers. Unfortunately,
although the Ortellis were listed in his indispensable Barometer Makers And Retailers 1660-1900, he never discussed
them. He lists Ortelli barometers with signatures from several towns including Macclesfield. And so it was time for the Births
Marriages and Deaths research, as well as the local directories etc.
Let me begin with the bad news. I have, so far, found no trace in any births, marriages or deaths records of any Ortellis
in Cheshire in the period from 1790 to 1840. I have found one directory covering Macclesfield at this
time, the 1811 edition of Holden's Annual London & County Directory of the United Kingdoms and Wales, but no Ortellis
were listed. There are no Macclesfield newspapers before 1811, but I have started work on those that exist; it
will take time, and so far nothing has come to light. One always hopes to find a notice along the lines of "Mr X thanks
the people of Y for their custom and begs to inform then that he has a new stock of excellent Zs at most reasonable
prices ..." Or, in the case of itinerant sellers, a notice that the seller has a room in a local inn from where
he will be selling his wares on market day etc.
Given the economic history of Macclesfield, the hope of finding
some documentation was more than just wishful thinking. You could reasonably say that Macclesfield was crying out for
a barometer seller beween 1796 and 1815 and that, to judge by the number barometers signed Ortelli of Macclesfield, the
Ortellis had answered the cry.
Plenty of Macclesfield Ortelli barometers exist,
but the one Italian resident of Macclesfield at this time was Giovanni Maria Verga, who arrived in England in 1805 and was
settled in Macclesfield by 1812 as he married a local girl and had a business as a carver and gilder. It is possible that
he was selling barometers made by the Ortellis. Verga spent the rest of his life in the town, and signed barometers - including
the very handsome example illustrated below. His barometers are all later than those signed by the Ortellis, which may or
may not be significant.

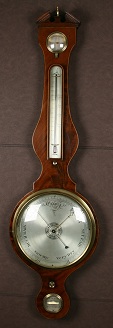

A late 1820s barometer signed I. Verga, Bath. |
|
Courtesy of Hg-Barometers, Ashbourne |
THE EVIDENCE OF THE BAROMETERS
At the moment I have catalogued
22 Macclesfield Ortellis; the number keeps rising, and Macclesfield vies with London as the most popular
town as far as Ortelli barometers are concerned. They are varied in style, signature and quality, though they are easily
among the best of the Ortellis, and there’s no doubt of their having been made and (certainly for the most
part) engraved in London. The quality variation is not an issue: just like today, their makers had to generate
a profit, and if that meant catering for new customers with less disposable income, well and good. Not every customer was
a mill owner with deep pockets. Some of the barometers are very run-of-the-mill. The signatures are: "Ortelli
& Co", "P. Ortelli & Co" and "N. Ortelli & Co" - with occasional variation
in the spelling of Ortelli - Ortelly is a not-uncommon anglicisation. And a possible mystery has emerged regarding the
dating of some of them.

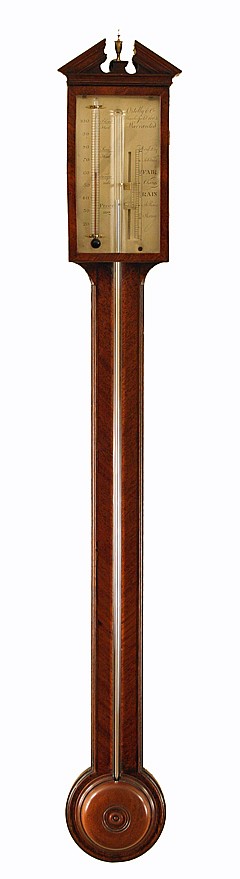

MACC1: Stick barometer Ortelly & Co, Macclesfield |
|
Courtesy of P A Oxley Antique Clocks and Barometers |
MACC1:
Stick Barometer by Ortelly & Co of Macclesfield. "A fine quality mahogany antique stick barometer. The rectangular
silvered brass scale calibrated from 27" to 31" with sliding vernier. The thermometer calibrated from 20º to
100º Fahrenheit. The mahogany case with exposed mercury tube and turned cistern cover to the base. The glazed access
door with broken architectural pediment above with central brass finial." That is from the online showroom of P A Oxley
Antique Clocks and Barometers who sold the barometer in 2012. It is a good example of how attractive the herringbone
veneer can look. And they added: "This barometer appears to have the actual date of manufacture [1805] on the scale
which is a rare feature to find on barometers. Height 39" .Note the careful use of the word ‘appears’.
MACC2: A mahogany stick
barometer with Vernier, by Ortelli and Co, Macclesfield (private owner, Macclesfield area.) Probabky datable to the second
decade of the 19th century. I haven't seen an image of it, but have spoken to the owner.

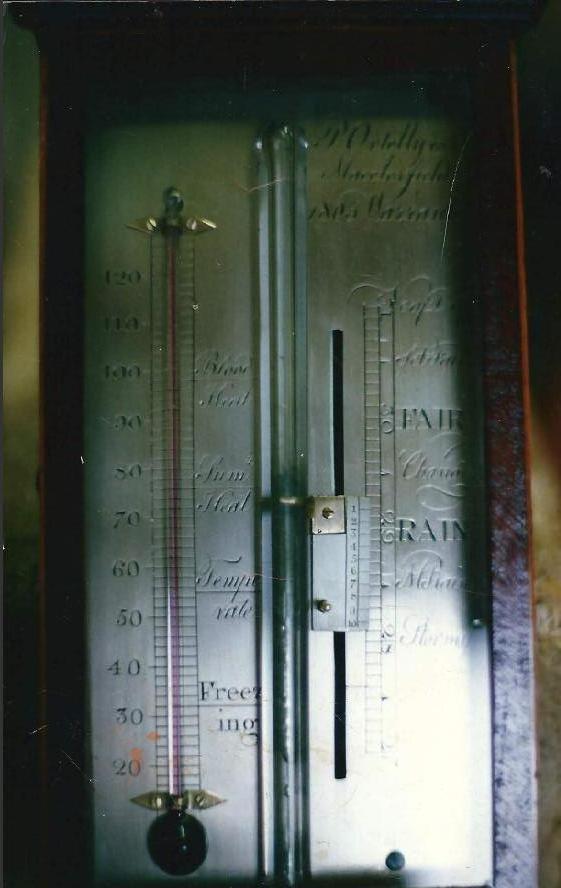

MACC3: P Ortelly & Co 1805, Register plate |
|
Courtesy of Andrew Foott |
MACC3: A mahogany stick barometer with vernier, engraved on the register plate: P.Ortelly
& Co Macclesfield, Warranted 1805. Glazed door, broken pediment. (Sold by Andrew Foott and present whereabouts
unknown.)
MACC4: A round top partridge wood wheel barometer,
boxwood strung, and fitted with thermometer, hygrometer and level. Sweetly engraved 10 inch dial with floral and foliate
theme echoed on the other plates. Flat glass, set hand adjusted from beneath the main dial. Level plate signed Ortelli &
Co Macclesfield. 102cm/40ins, Circa 1805, based on style, thickness of the veneer and the dating of a Tagliabue
and Torre, see the link in this paragraph. The scale is divided into inches and 80th of inches. Partridgewood, which takes
its name from its resemblance to the wing of a partridge, is an exceptionally rare veneer to find
on a barometer. It would be interesting to find the whereabouts of the Barelli wheel barometer said to be in the same
wood, especially as the two families came from the same village and were related by marriage. Compare the barometer,
shown below, with that in the following link - which cost prevents me from
reproducing: http://www.nationaltrustimages.org.uk/image/340912 It is by Tagliabue and Torre and has to be datable to 1800-1807 when, according to Goodison, they were in partnership.
It is slightly shorter, at 99 cms, differently veneered, but the shape is identical. And the della Torres also came from the
same village as the Ortellis, with whom they regularly intermarried. Restored by Andrew Firth; private collection.
MACC4: Ortelli & Co Macclesfield Round Top |
|
MACC4. Ortelli & Co Macclesfield |
|
detail of main dial engraving |

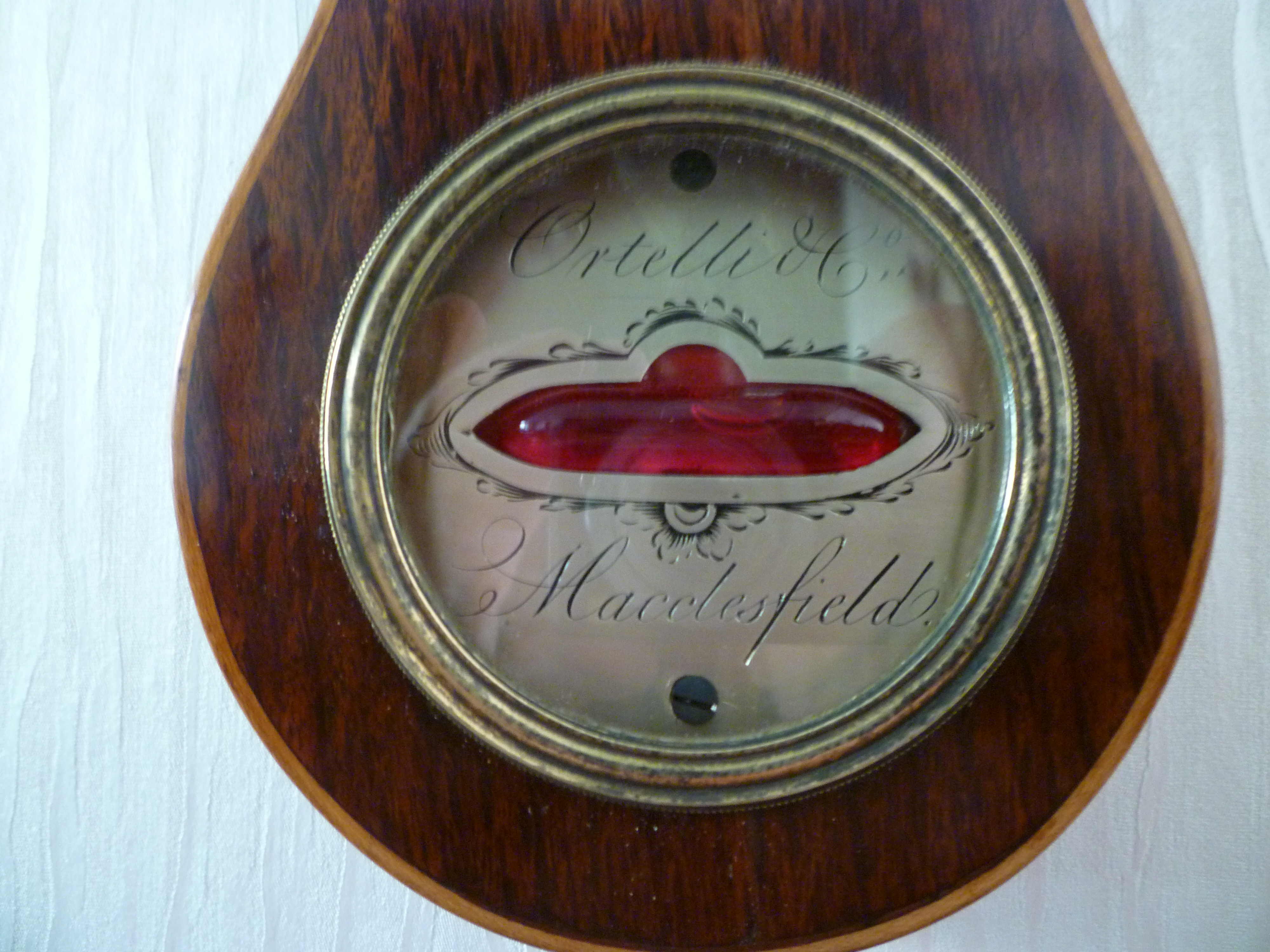

MACC4: spirit level with signature |
|
and detail of partridge wood veneer |
MACC5: A mahogany
wheel barometer with a 10 inch dial and swan neck (or scroll) pediment , signed Ortelli & Co Macclesfield, is recorded
by Nicholas Goodison in his book English Barometers 1680-1860. I have not seen an image of this instrument but I
include it because for a time it was the only Macclesfield specimen with a swan neck pediment to which I had found a
reference. Goodison gives no idea of the date, but, given the other Macclesfield instruments, it is not unreasonable to attribute
it to the period before 1825.

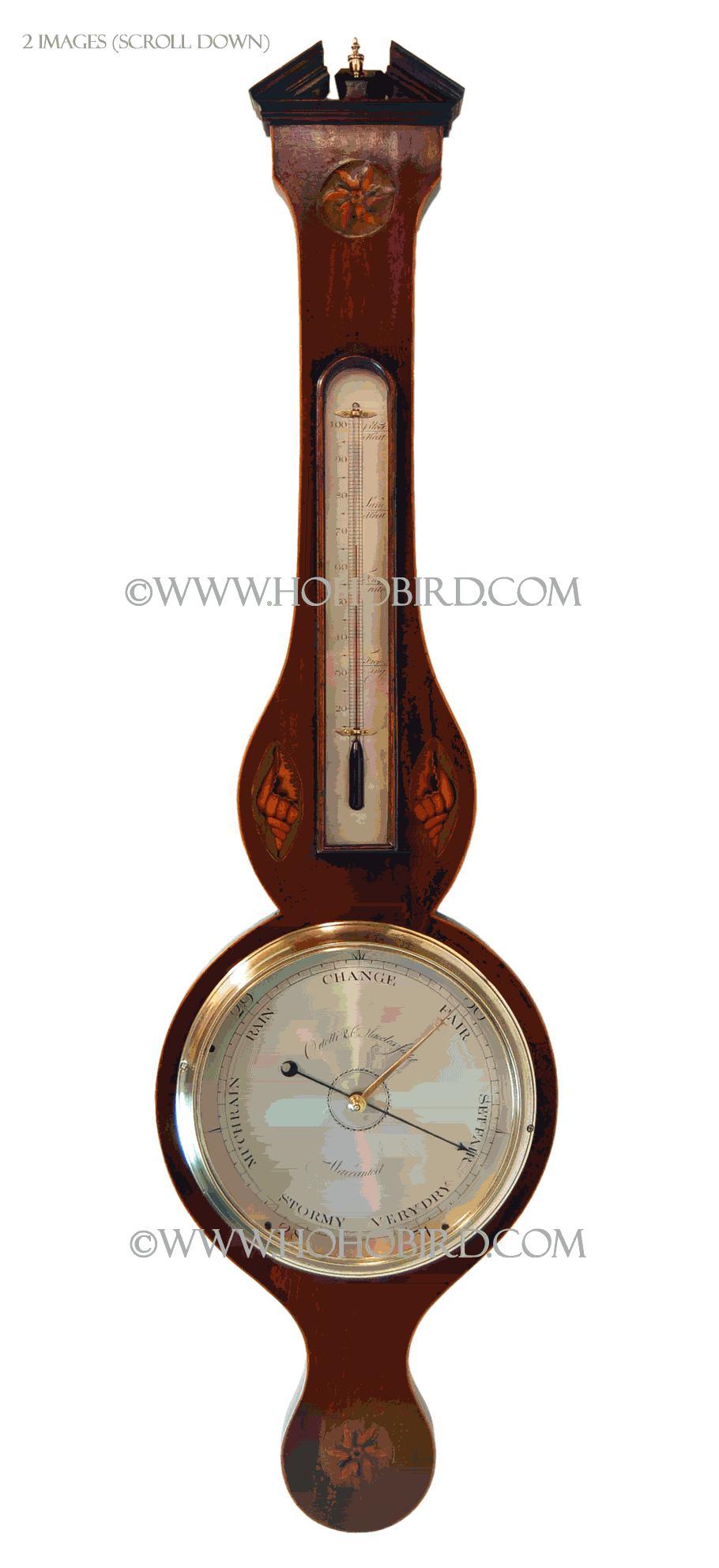

MACC6: Ortelli & Co Macclesfield, Sheraton |
|
Courtesy of Ho Ho Bird Antique Clocks and Barometers |
MACC6 Mahogany Sheraton wheel barometer signed Ortelli & Co Macclesfield, Warranted, with very
attractive round floral and traditional shell paterae, eight-inch dial, boxwood stringing and broken pediment. 43 inches
high. Currently for sale at HoHo Bird Antique Clocks and Barometers. The side veneers are laid horizontally, a mark of quality,
and the veneer has acquired a rich patina. At 43 inches and with a short shoulder between pediment and neck, this example
is sufficiently different from typical Sheratons to support the dealer’s estimate of circa 1810

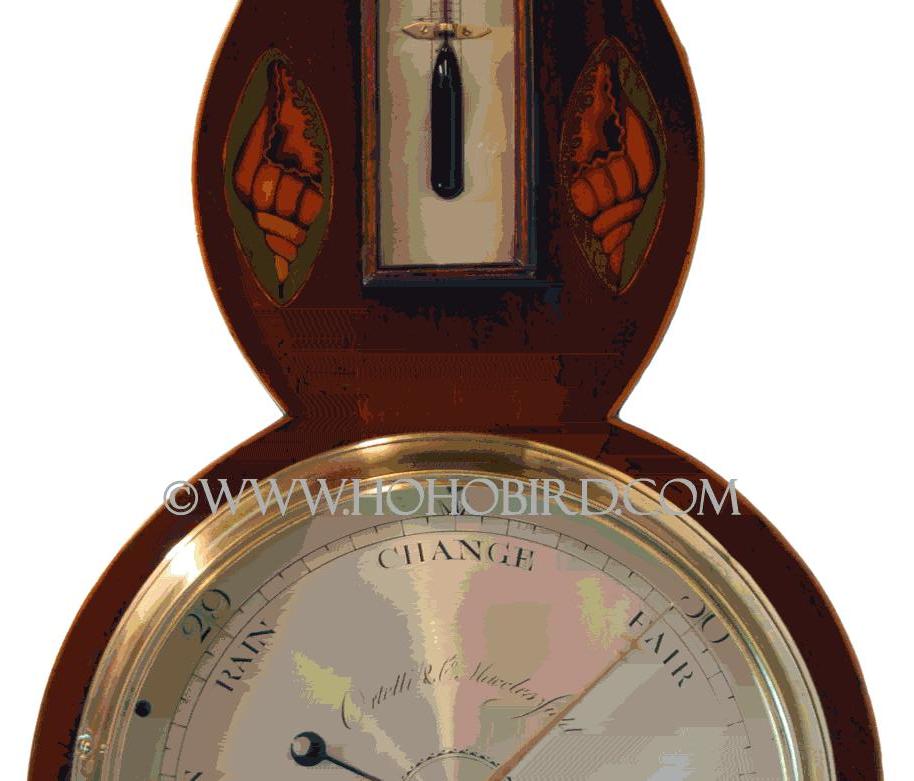

MACC6 Ortelli & Co, Macclesfield, detail |
|
Courtesy of Ho Ho Bird Antique Clocks and Barometers |

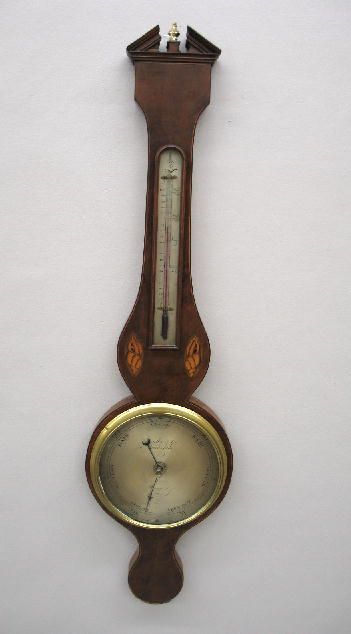

MACC7: Ortelly & Co Macclesfield, dated 1805 |
|
Courtesy Garth's Auctions Inc Delaware USA |

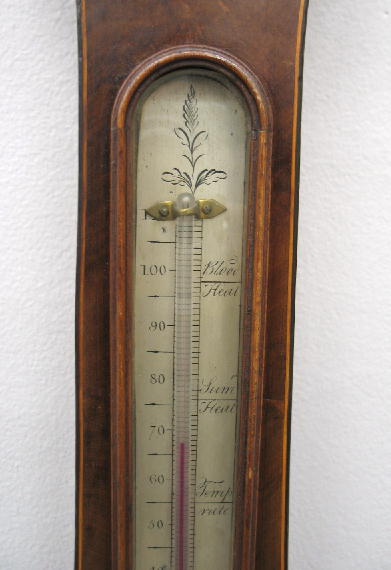

MACC7: detail of thermometer engraving |
|
Courtesy of Garth's Auction, Delaware, USA |
MACC7 A mahogany veneered shell wheel barometer marked Ortelly & Co.
Macclesfield Warranted 1805, with broken pediment and shell inlay, 39". The case appears to be strung with ebony and
has pale line inlay. Auctioned by Garths in the USA. The foliate engraving above the top of the thermometer register echoes
that of No. 9 and No.4 . From the image, it has an eight inch dial which was standard for the ‘Sheraton types, but doesn’t
have the top and bottom floral motifs. . The only images that the auction house had on file are not very hi-res, so the
detail of the main dial engraving is not sharp. However, the the date is engraved below the spindle, underneath 'Warranted'.
The indicating hand is broken and the set hand is not original.
MACC8: A mahogany wheel barometer by P. Ortelli
& Co., Macclesfield, inlaid with shell and star decoration, with broken pediment and measuring 39 inches. Auctioned by
Mallams of Oxford in 1995. Unfortunately, they have no image of it but it appears to conform the standard Sheraton type.
MACC9 : N Ortelli, Macclesfield, Sheraton style |
|
Courtesy of Andrew Foott |

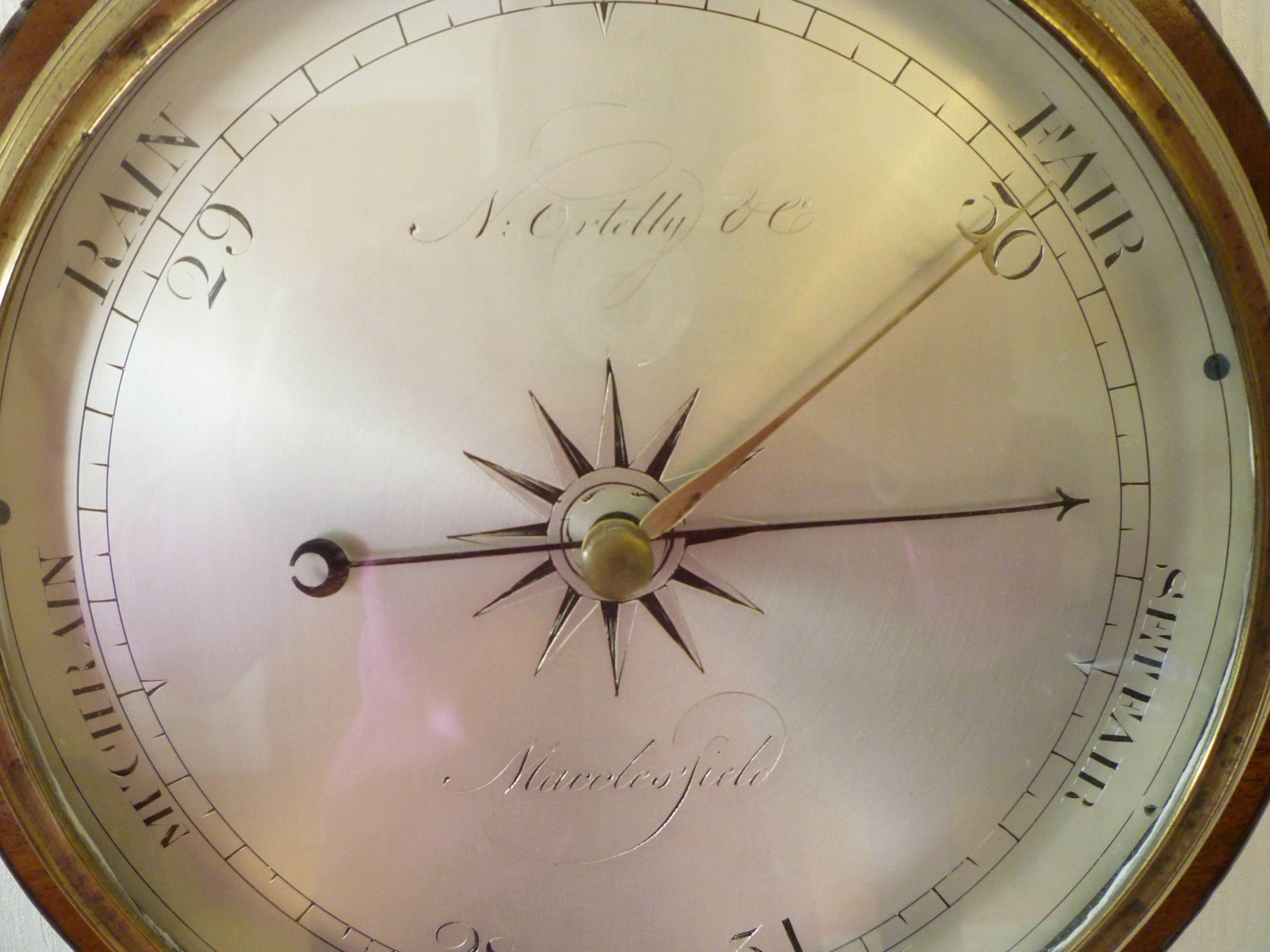

MACC9: A Sheraton type, ebony strung and crisply
engraved with a spiky sunburst at the centre of the main dial and a pretty leaf design at the top of the thermometer, like
Nos 4, 7, and 10. Shell and flower paterae. Dial engraved N Ortelly & Co Macclesfield. The thermometer bulb
is not smooth - proof of hand-blowing! Private collection, Cheshire

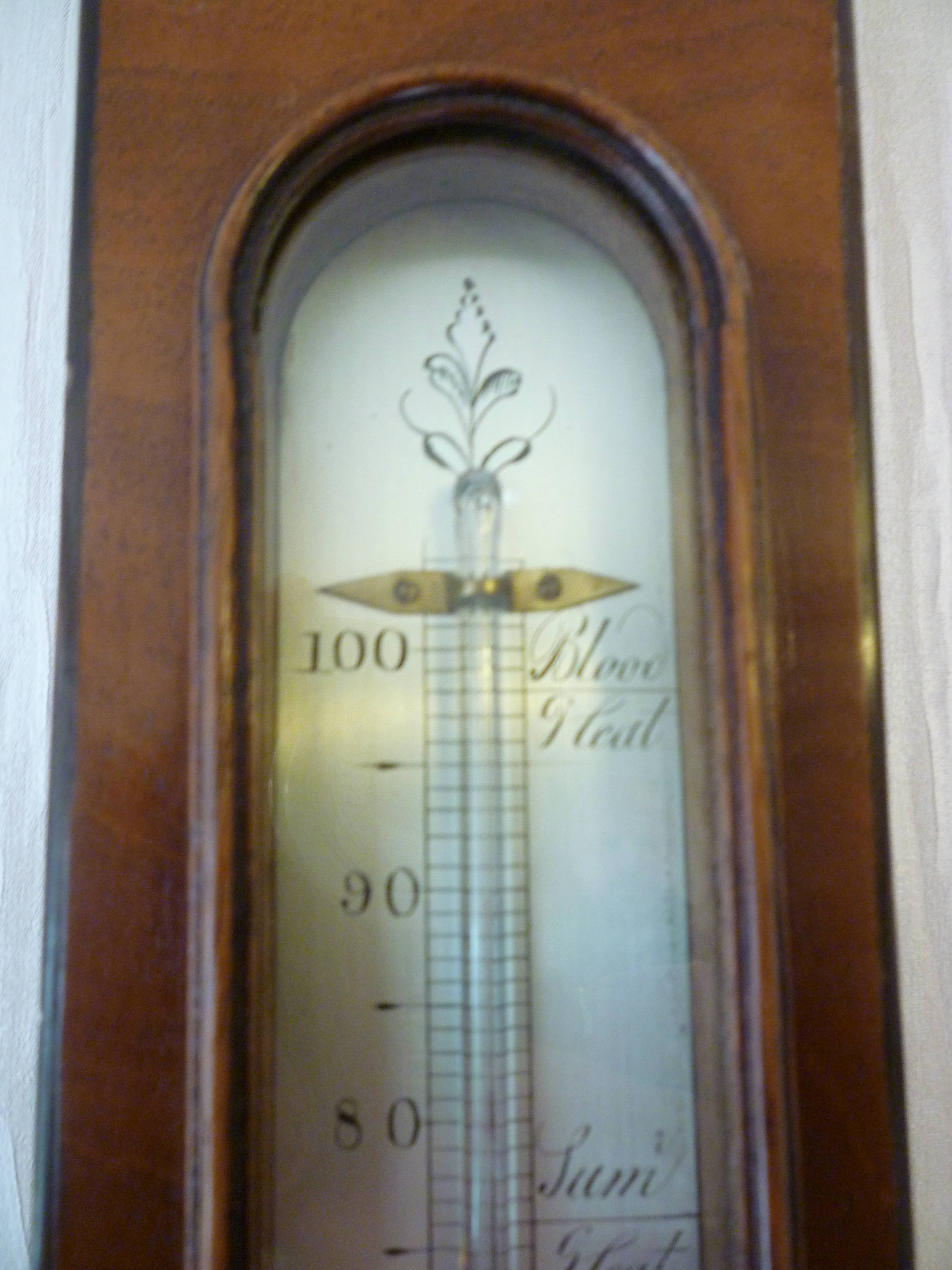

MACC9: N Ortelli Macclesfield: thermometer detail |
|
Courtesy of Andrew Foott |

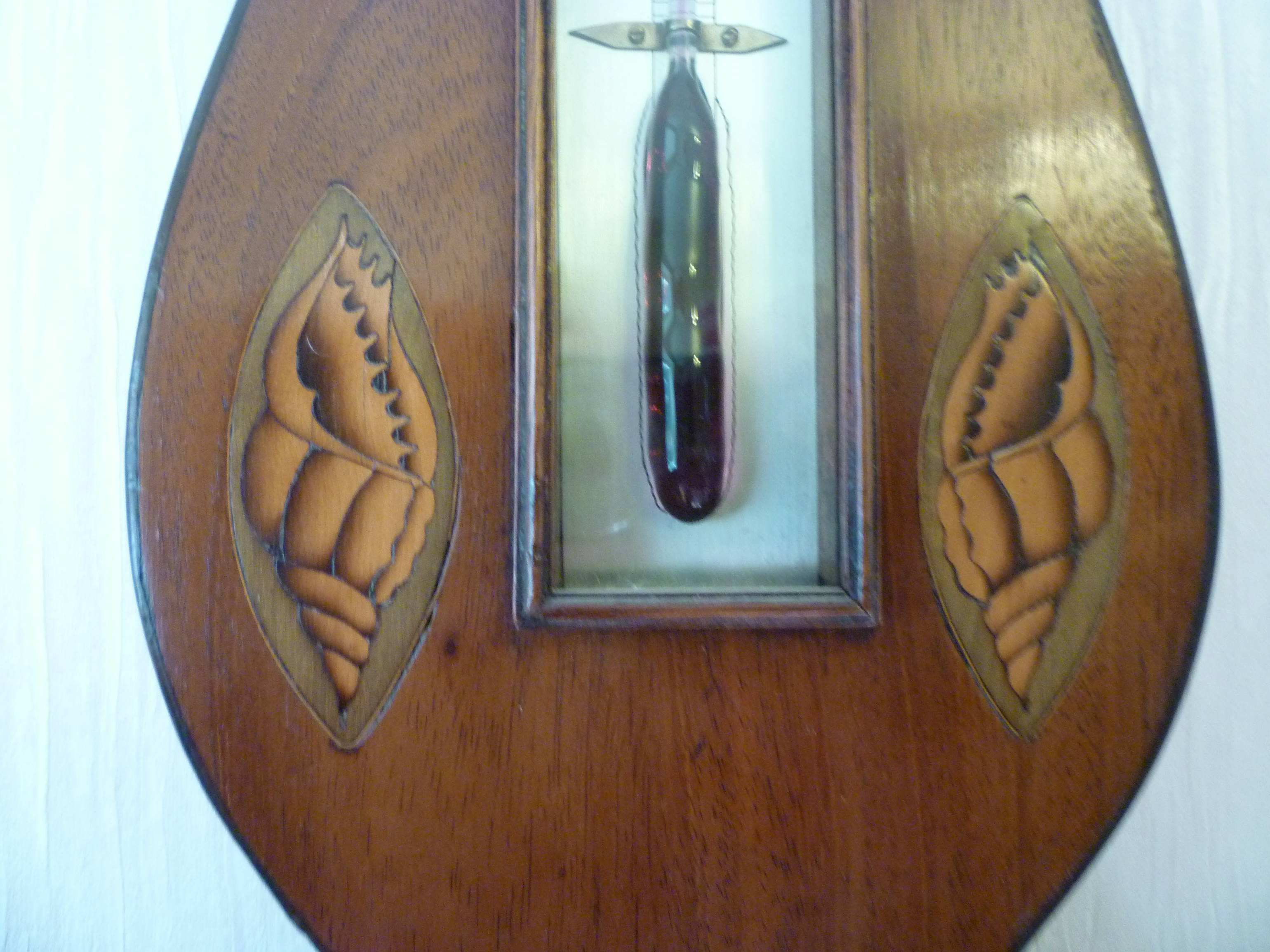

MACC9N Ortelly Macclesfield, Shell inlay and bulb |
|
Courtesy of Andrew Foott |
MACC9: N. Ortelly, Macclesfield, Sheraton |
|
Courtesy of Andrew Foott |
MACC 10:
Beautiful and striking four-dial mahogany 8" wheel barometer, with architectural pediment,
rope stringing , shell inlay, signed N.Ortelli Macclesfield. What points to an early date of about 1810, maybe earlier, is
the short shoulder at the top beneath the pediment, as well as the word ‘Change’ being engraved in uppercase
Roman, added to the fact that the dial is close to the case edge. The short shoulder gives it a gorgeous, sensuous shape. The design at the centre of the dial is small in diameter but the engraving within is actually quite detailed.
There are pretty foliate motifs to the thermometer plate that are echoed in MACC9, 4, and 7. Restored by Andrew
Foott and present whereabouts unknown.

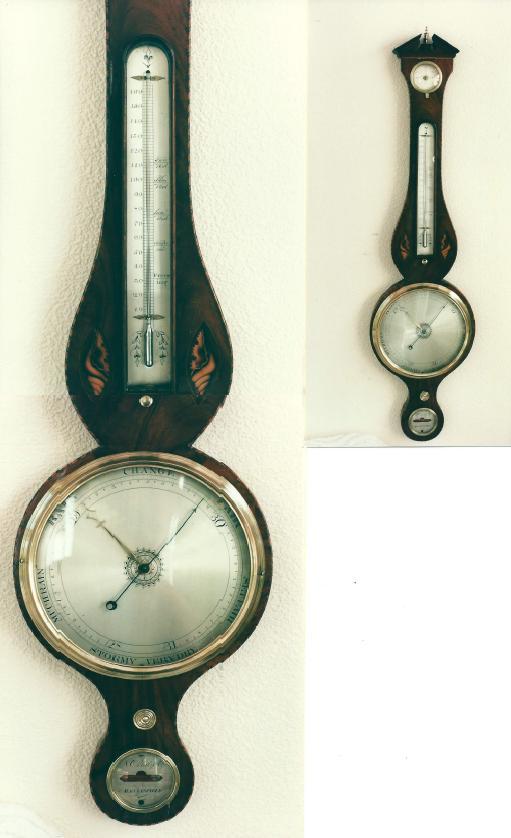

MACC10: N Ortelli, Macclesfield. Composite image |
|
Courtesy of Andrew Foott |
MACC11: Shell and the thermometer bulbl |
|
Courtesy of Andrew Foott |
MACC 11: Ortelli & Co Macclesfield, 1805, Sheraton style.
The fourth Macclesfield Ortelli to be engraved 1805. Eight inch dial with ebony stringing and pale line inlay.
The name, town and date are prominently engraved on the main dial and framed on three sides by foliate engraving. The veneers
are laid horizontally across the sides, a mark of quality that isn't reflected in the rather crude conch shell inlays.
(Private collection, Cheshire).

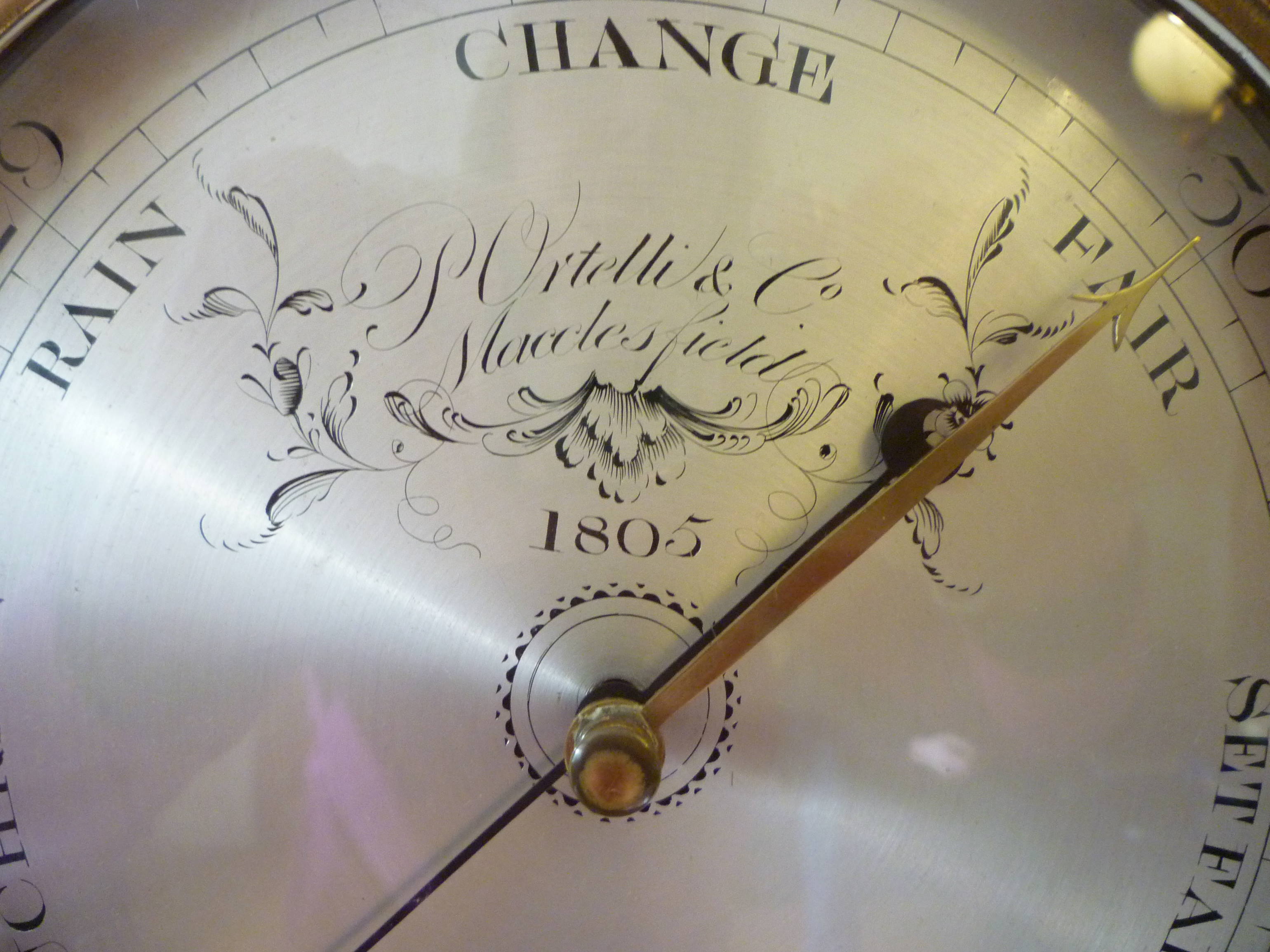

MACC11: P Ortelli Macclesfield 1805 |
|
Courtesy of Andrew Foott |

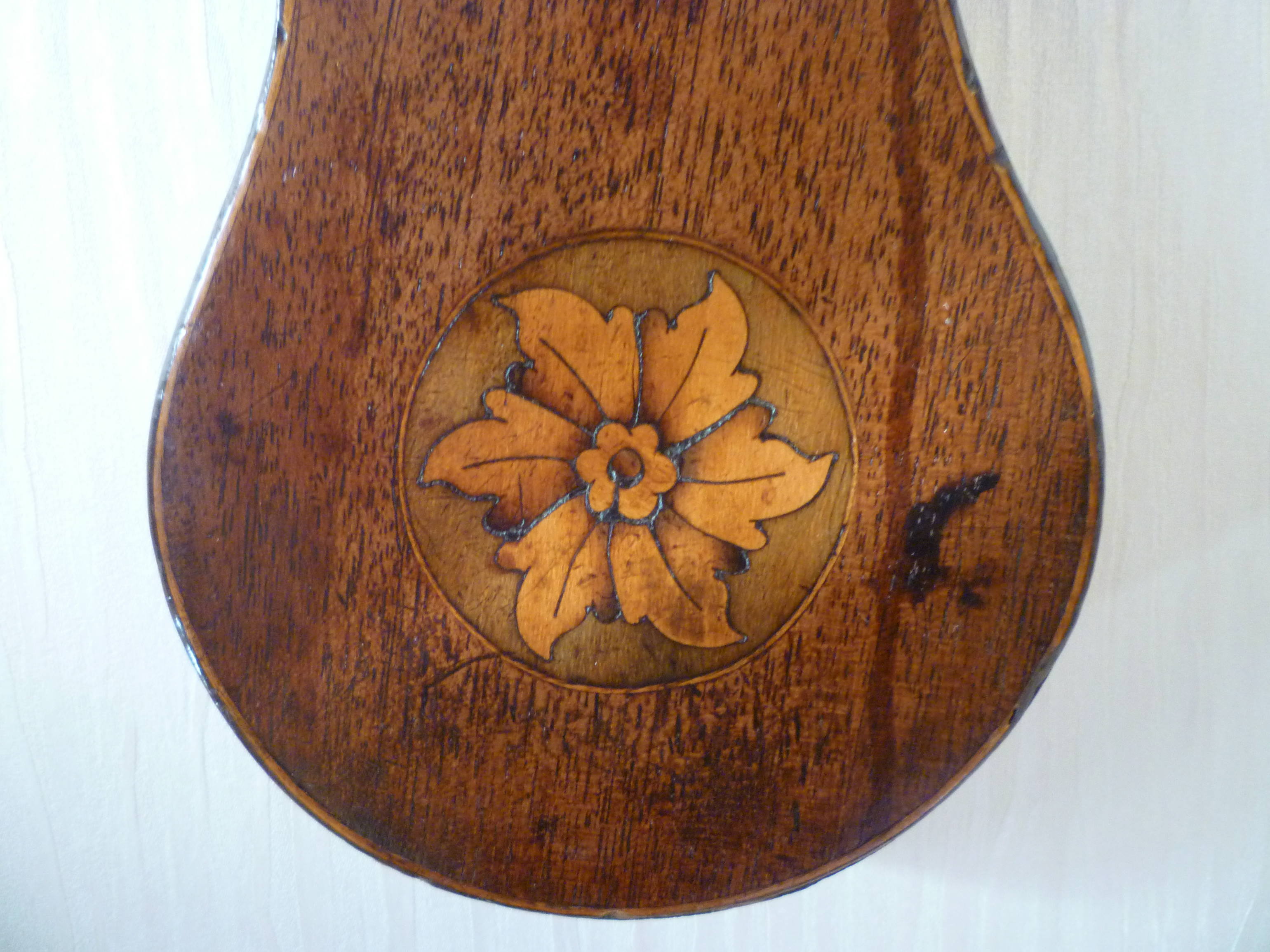

No. 11: Floral patera |
|
Courtesy of Andrew Foott |
MACC 12: Sheraton style, engraved on the silvered dial Ortelly & Co Macclesfield Warranted, with alcohol
thermometer, the broken-line inlaid case with pairs of shell and flower paterae beneath an open triangular pediment, 98cm.
Auctioned on 4th March 2011 by Mellors and Kirk, Nottingham, lot 861.

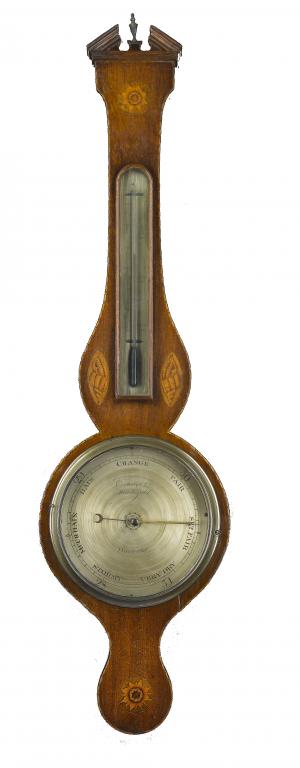

MACC12, Ortelli, Macclesfield, Sheraton style |
|
Courtesy of Mellors & Kirk auctioneers |

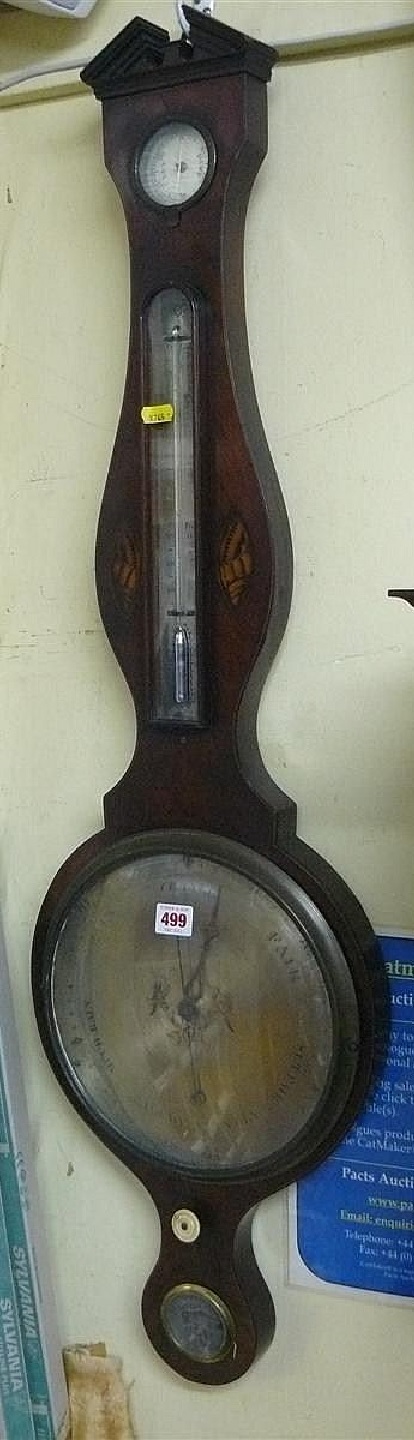

MACC13: 4-glass with shell inlay |
|
Courtesy Stride & Co Auctions |
MACC13:
Mahogany and line-inlaid, four-glass wheel barometer by "S Ortelly & Co Macclesfield". The "S" is
probably a misreading of a florid P. Apart from the broken pediment this is identical in shape to the round-top instrument.
Shell inlay. Probably post-1810 because of the depth of the shoulder immediately below the broken pediment. Auctioned
2012 by Stride & Co, Chichester. Lovely dial engraving that is very similar to LON1, see the next page. Looks in serious
need of some TLC, but could be a very handsome barometer if restored.

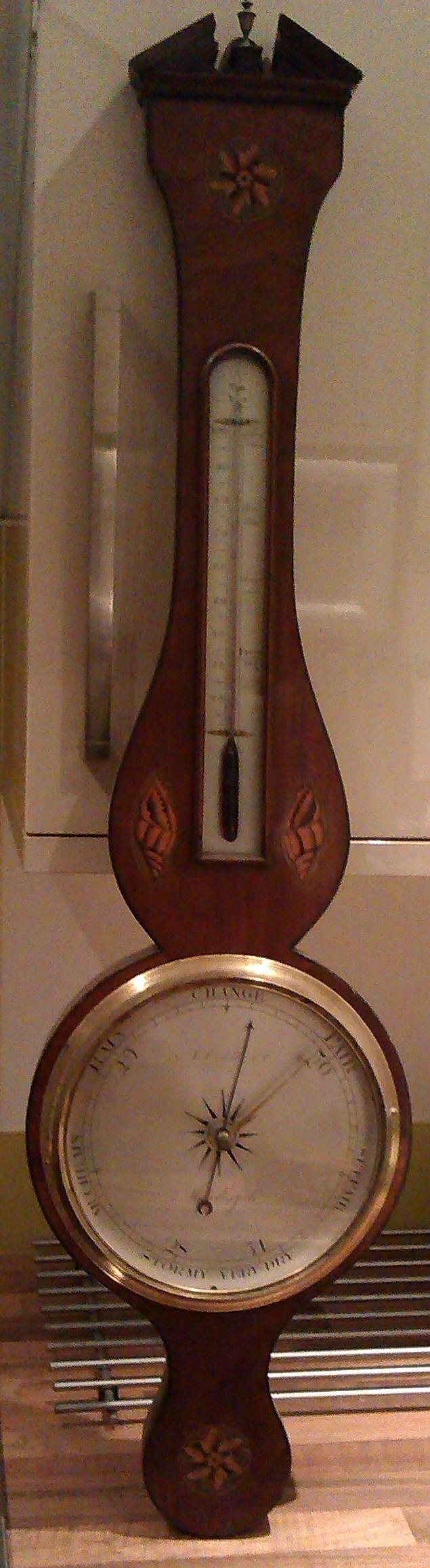

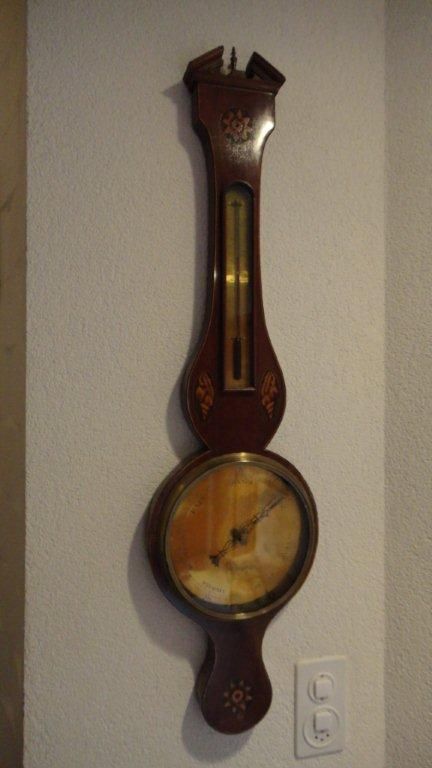

MACC14 |
|
Sheraton seen on Ebay.ch Nov2013 |
Macc 14 A
Sheraton signed Ortelli & Co Macclesfield. Hands look newer. The vendor who tried to sell it with on Ebay
Switzerland in November 2013 put the signature in inverted commas and then added a tilde symbol in front of 1806/ I am assuming
this indicated 'approximately 1806' (though the style of the barometer is more like 1816)) rather than an indication
that 1806 was engraved on the dial.
MACC15: Deleted when found to
be a duplicate.
MACC16: P Ortelli & Co Macclesfield
1806 Mahogany Sheraton, 97cms, shell and flower inlay. Auctioned by Bonhams 15 Oct 2007, Lot 770. Unfortunately, Bonham's
have no image of this, which is a great pity as there is a good chance that the 1806 date is a misreading of 1805 or
just a typo. However, Macc22 is definitely engraved 1806, so the date on this one could well be correct. If anyone
reading this can trace their barometer to Bonhams in 2007, I would be really grateful to you for confirmation.
MACC17: An Ortelli Macclesfield, 1805,
was seen at a restorer's workshop. It cannot be one of the instruments already listed; enquiries being made by third party.

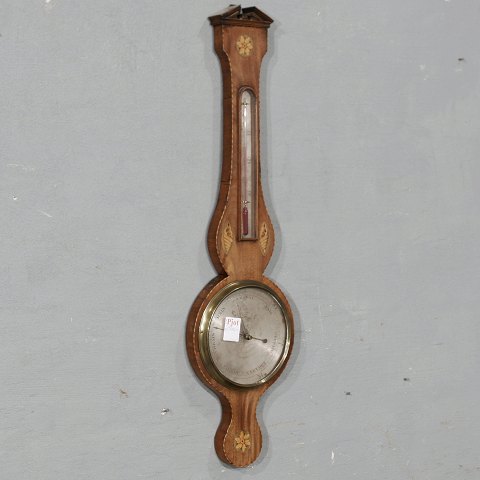

MACC18: P. Ortelli & Co Macclesfield dated 1805 |
|
Courtesy Antik Pjot |

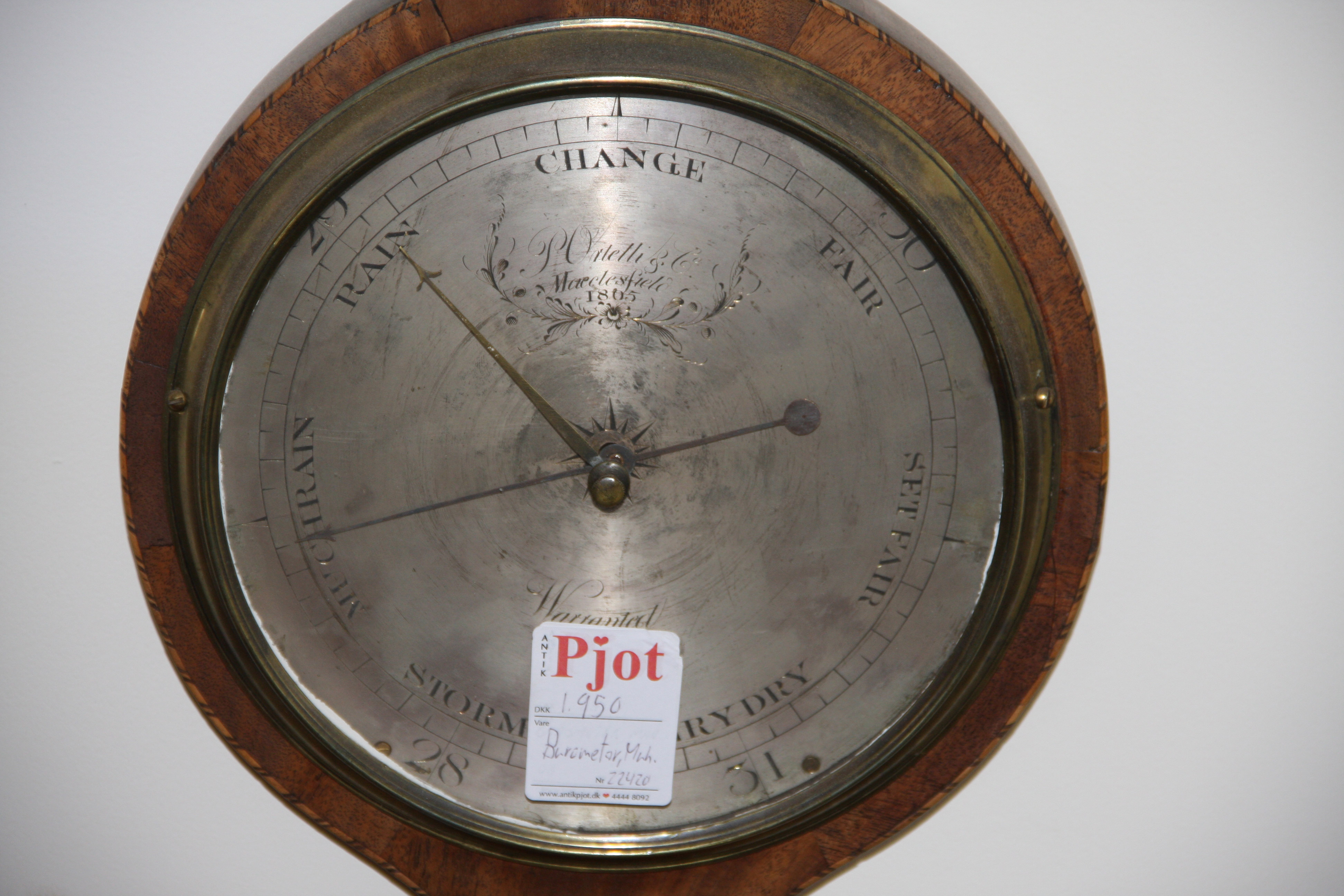

MACC18: Dial engraving, and rope stringing |
|
Courtesy of Antik Pjot |
MACC18: A very handsome mahogany Sheraton with conch shell and floral inlay
and lovely rope stringing. The side veneers look to be laid horizontally but it's not entirely clear. The dial has similiarites
with that of MACC11, being engraved with a floral and foliate motif that embraces the signature;
"P. Ortelli & Co, Macclesfield, 1805", with "Warranted" below the centre of the dial. 97cm tall. Currently
for sale at Antik Pjot, Rødovre, Denmark.

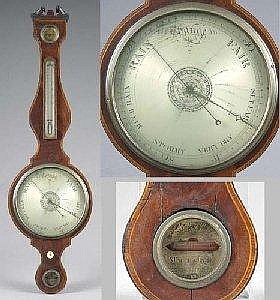

Macc19 crossbanded 4-glass |
|
Signed P Ortelly on level plate |
MACC19: Mahogany wheel barometer with mercury thermometer,
hygrometer, main dial and spirit level, mahogany veneered case tulipwood crossbanding and swan neck pediment with rosettes.
Signed P Ortelly & Co Macclesfield Warranted. One of the loveliest Ortellis. Sold by Neales, Nottingham (Now
Dreweatts) Lot 343 24 Feb 2005
MACC20: Mahogany stick barometer,
signed P Ortelli Macclesfield. Broken pediment, inlaid cistern cover, glazed door to thermometer and vernier, Lot 405 Shanklin
Auction Rooms 2001

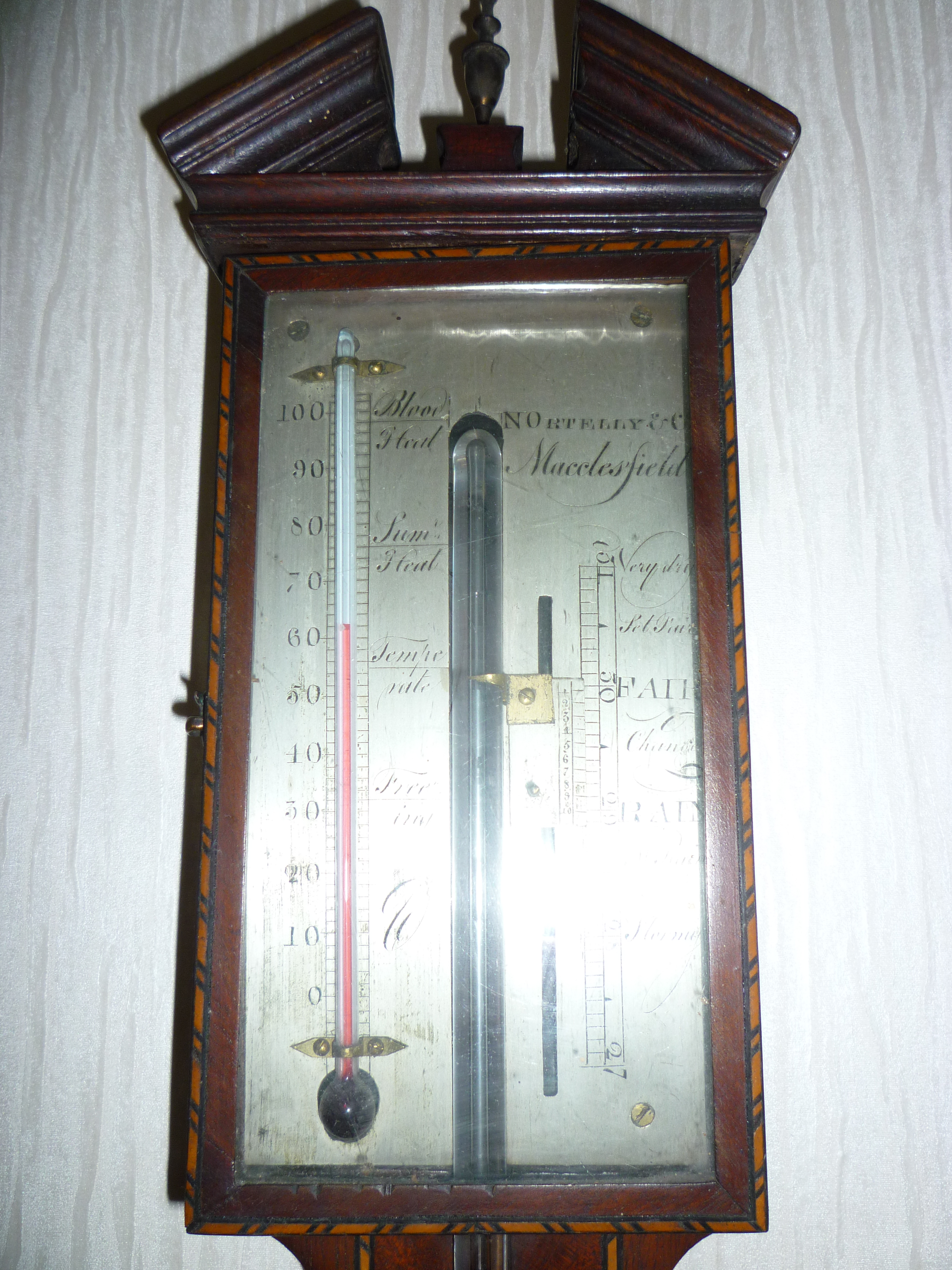

Macc21 N Ortelly, stick c.1810 |
|
Private collection |

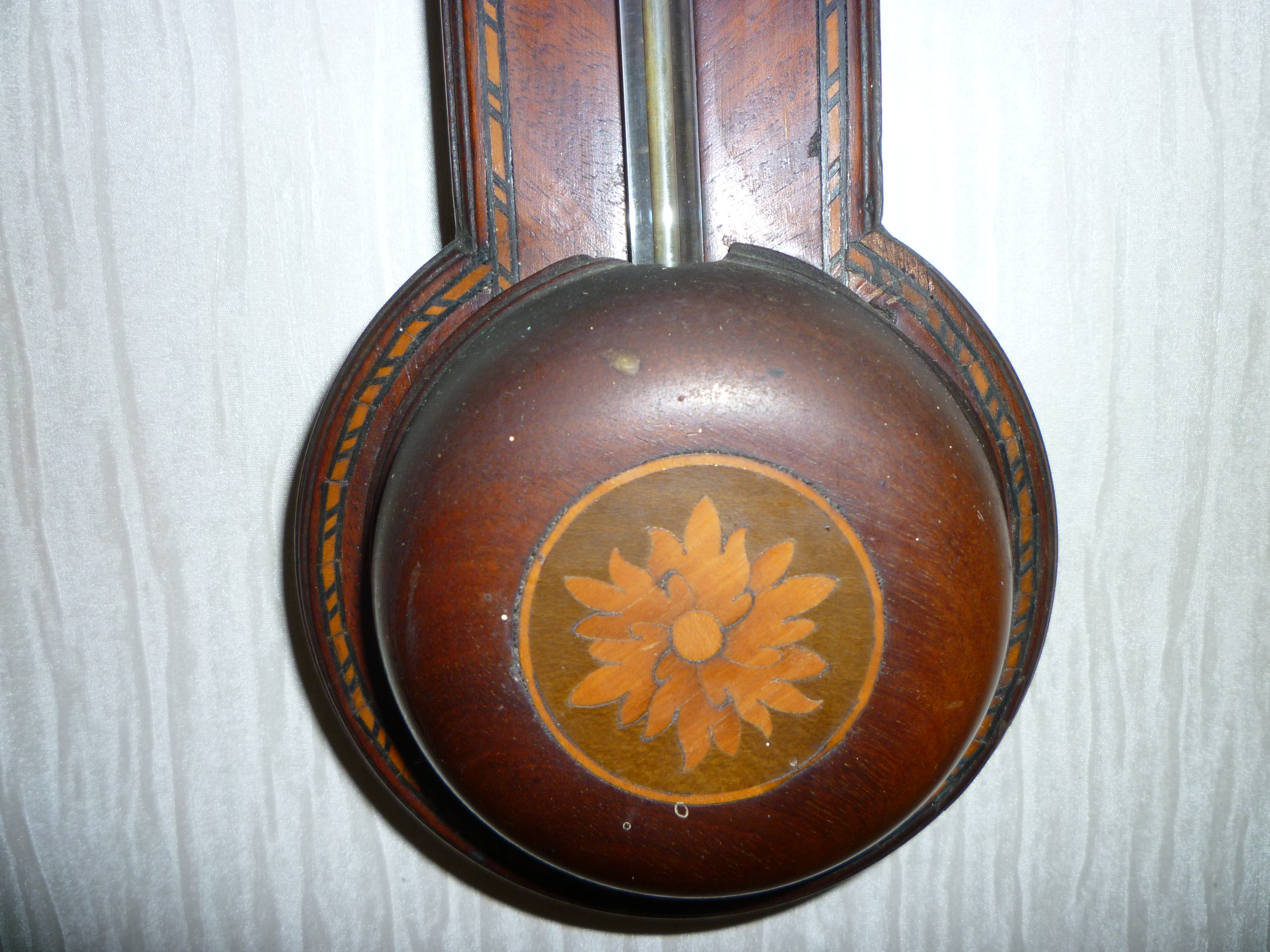

Macc 21 Inlaid cistern cover |
|
Private collection |
MACC21 Probably the most distinctive
of the Ortelli stick barometers. Signed N.Ortelly & Co., Macclesfield and datable to circa 1810. Mahogany veneer
laid in herringbone pattern, with rope inlay to shaft and around door - making it less common. Vernier
and (replacement) alcohol thermometer, brass finial; original cistern cover most unusually inlaid with floral motif.
99cm. Sold May 2013 by Frank Marshall Auctioneers. The engraving is unusual because while the town name is elegantly
engraved in cursive script, the Ortelli name looks somewhat more crude.

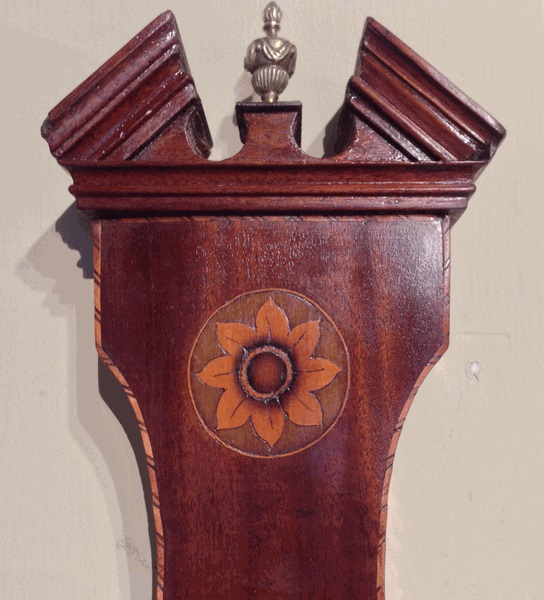

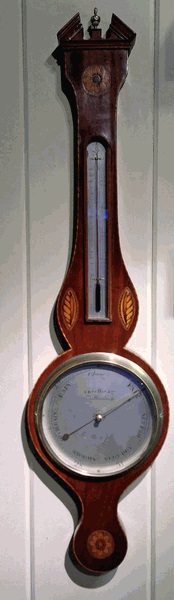

MACC22 '1806' Sheraton |
|
Courtesy of The Weather Store |
MACC22 '1806' Sheraton |
|
Courtesy of The Weather Store |

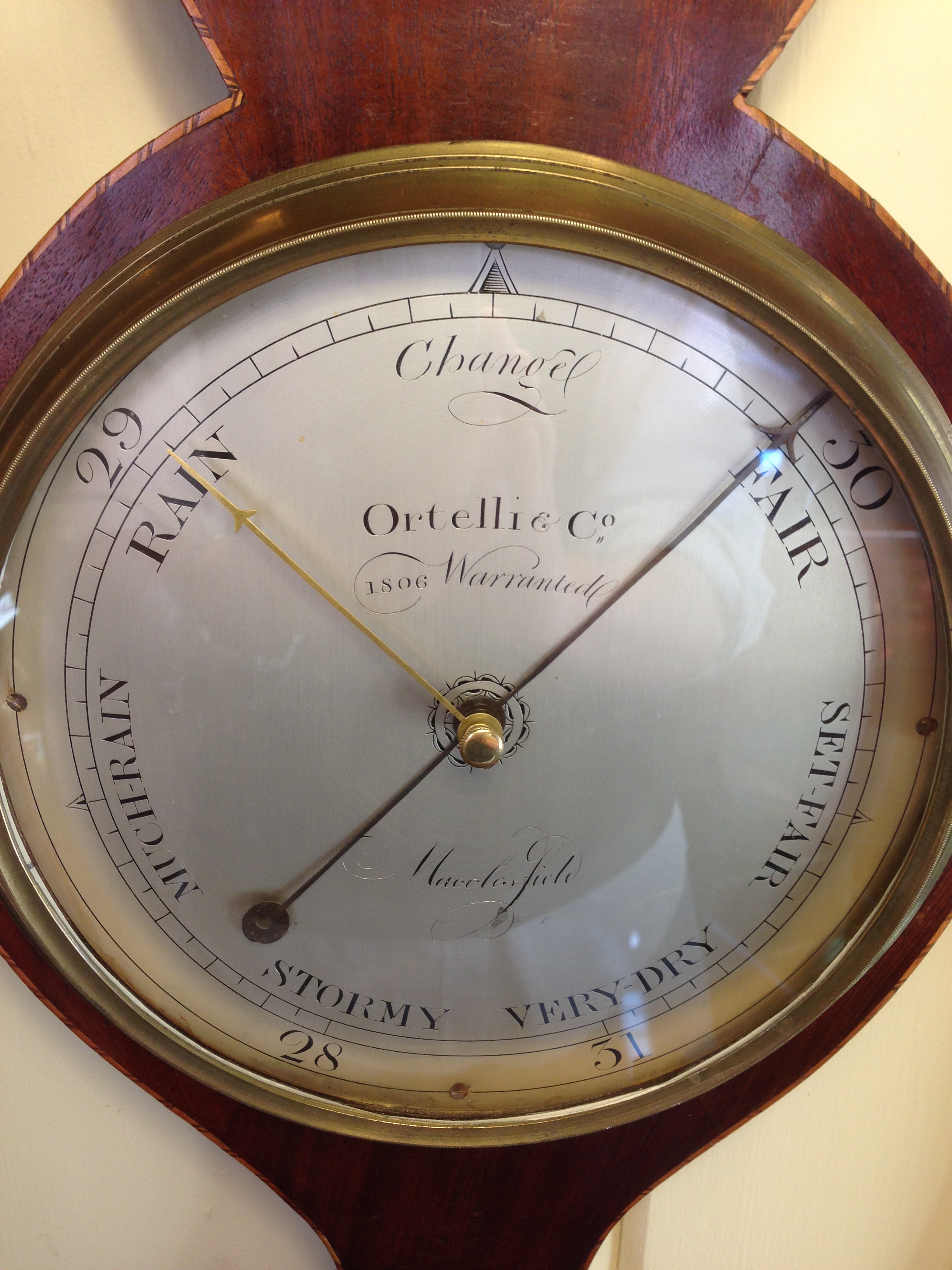

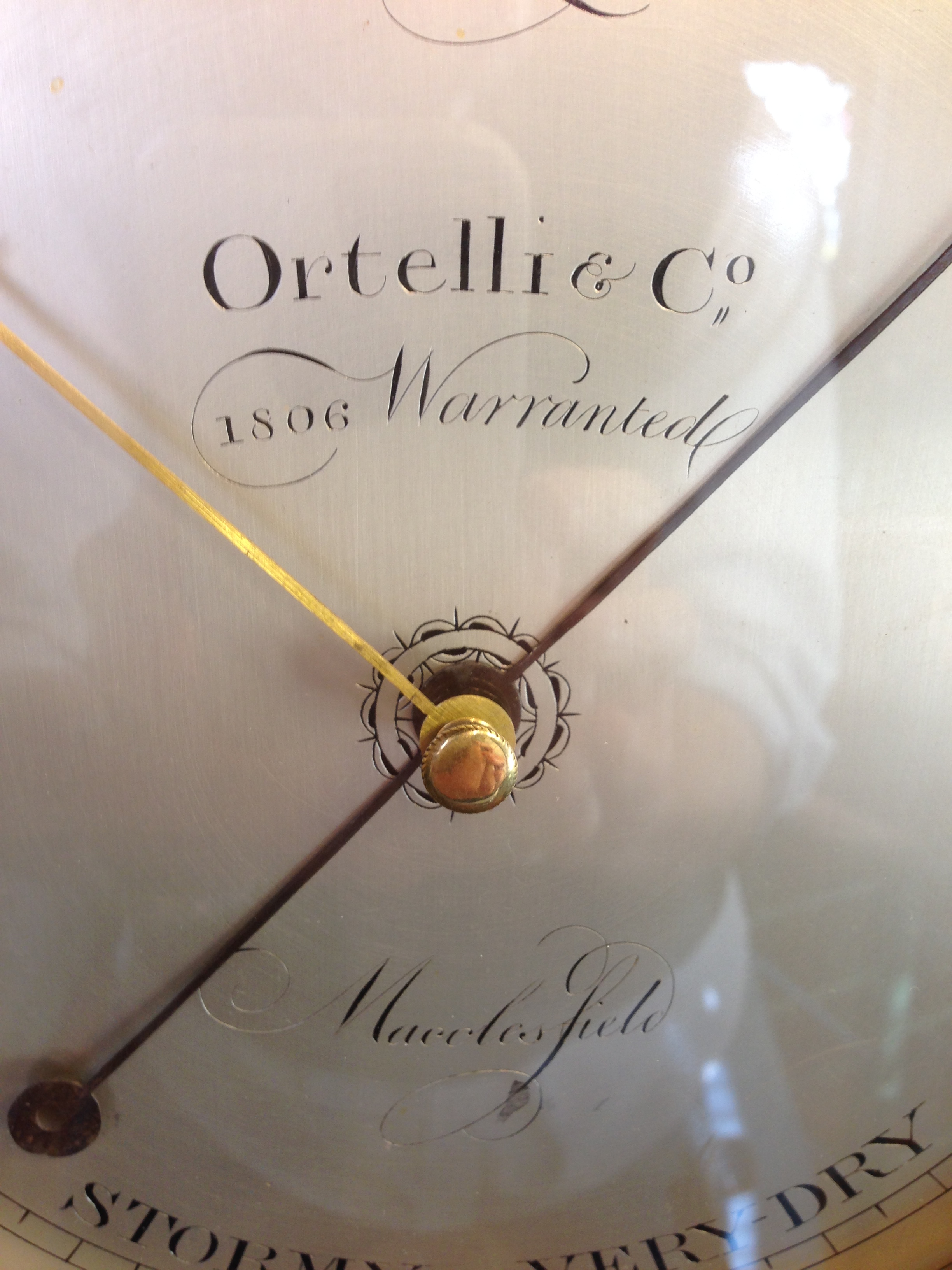

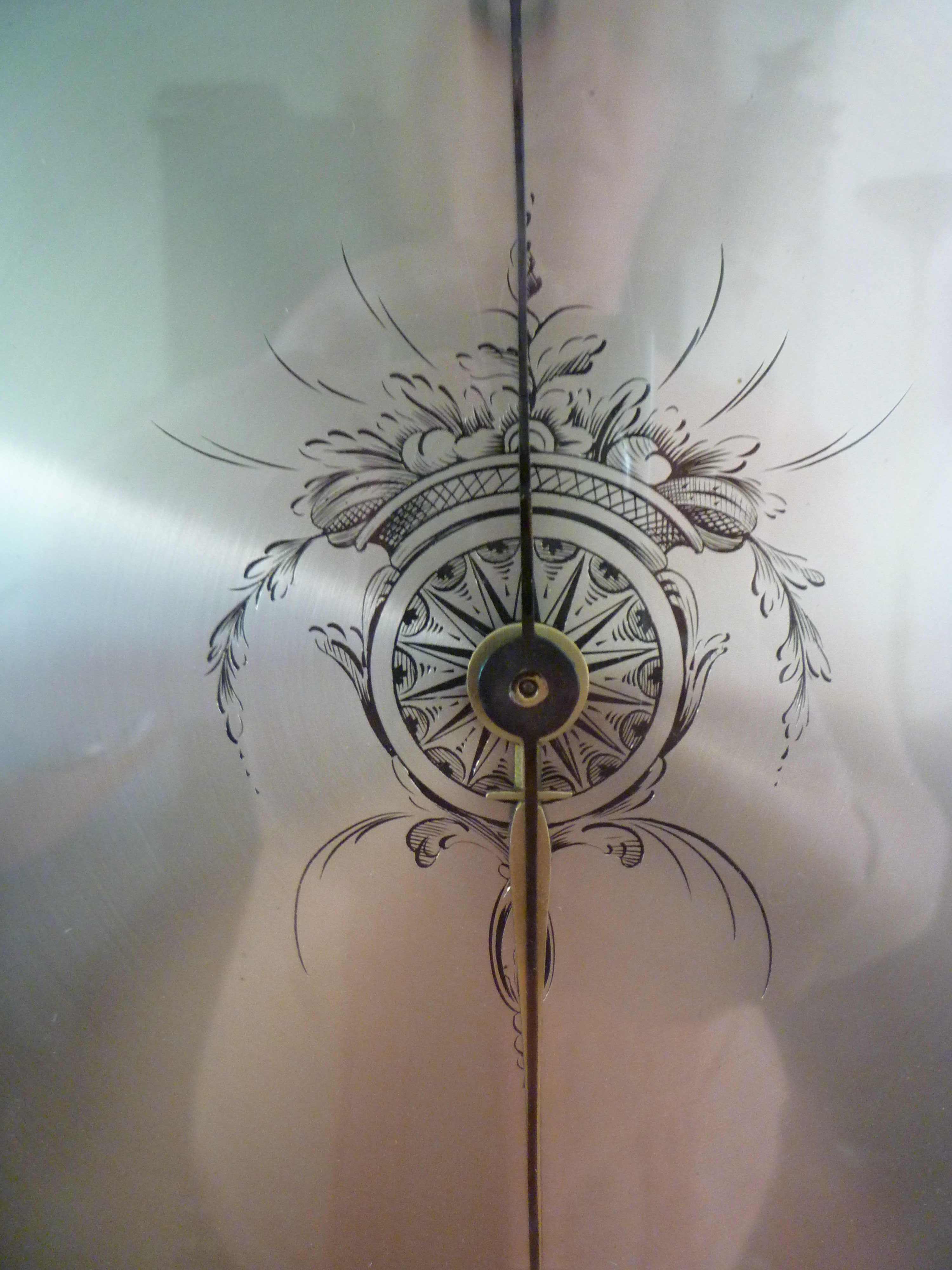

Details of dial |
|
Courtesy of The Weatherstore |
Details of dial |
|
Courtesy of The Weatherstore |
MACC22 An extremely handsome Sheraton,
39 ins long, with lovely rope stringing which, for once, seems to have reproduced well in one of the four images above.
Original spirit thermometer, replacement tube, crisp paterae. A pretty leaf engraving sprouts above the thermometer.
The central engraving of the dial is unostentatious. Yet again there is dating: Ortelli & Co, 1806, Warranted,
Macclesfield. Absolutely no doubt about reading 1806 clearly: the engraving is sharp. Currently for sale at The Weather
Store, Sandwich, Maine, USA.
MACC23 Stick
barometer signed N. Ortelly & Co. Macclesfield, broken pediment, glazed door, brass vernier, exposed tube. Quartered veneer
inlaid surround. Although I was wary of listing this as it was auctioned as far back as 19 October 1994 by Boardman
Fine Art, it doesn't appear to duplicate anything - the other N, Ortelli stick has an inlaid cistern cover.
MACC24 Another barometer auction in
1994, by Sheffield Auction Gallery, but not corresponding to anything obvious already uploaded. It is a mahogany Sheraton
with harewood ground shell and floral paterae, and it is sighed P Ortelli & Co Macclesfield 1805 Warranted. I am writing
to ask if they have the image or the catalogue which seems to have contained an image of the instrument.
THE 1805/1806 QUESTION
What is exceptional about this group of barometers is that eight of them are engraved with a date, and that
date is, in six cases, 1805 and in two cases, 1806. In the next section you will find another
Ortelli with a date, but that is 1817 and it's signed Ortelli Buckingham. It is, as Oxleys noted above, very
rare to find any barometer with an actual date; most have to be dated by reconciling the style with the records that
prove or suggest when the maker was working at a particular address. And that is not an exact science for even the experts.
To find so many dated barometers, all signed Macclesfield and all by one family of makers is amazing. But
not everyone is convinced that 1805 or 1806 refers to the date when the instruments were made, and I have to share those
doubts.
Why would a maker engrave eight barometers with any date that was not the
date of making? Logically, the barometers were engraved at the time they were made, perhaps even before they were
sent or taken to Macclesfield. So they should all date from 1805 or 1806. Once sold, they would have gone to separate
homes and never come together again. That rules out a later conspiracy to forge the date.
If
dating a barometer by a maker is so unusual, why date this particular batch, and why 1805 or 1806? It could be that
1805 was the first year in which the Ortellis made/sold barometers under their own name in Macclesfield (or anywhere
else, for that matter) and they wanted to mark it by dating the first batch 1805. Moreover, 1805 was a very significant
year: Battle of Trafalgar and death of Nelson. That had a huge effect on people, not unlike that caused by the death
of Princess Diana almost 200 years later, and Nelson didn't have anything like the same media
to whip up hysteria. If the barometers were all made late in the year, engraving 1805 would be a little way of marking
this great event. Owners could say "I bought it in the year of Trafalgar". End of story, surely?
If only...
Apart from the fact that 1806 doesn't have the quite the same resonance as 1805, the
doubts initially hinged primarily on the inclusion of the dated Sheratons illustrated above - Nos. MACC 7, 11, 16 18
and 22. 1805/6 falls into a period of experimentation in the design of wheel barometers - not in the inner workings
but the in shape and decoration of the cases. The typical Sheraton shell barometer became popular from
1810 and dominated from 1815 into the 1820s. You might argue about two of them, but not all. MACC7
and MACC22, for example, are very much from the very early 1820s with their longer shoulder (the part of the
case between the bottom of the pediment and the start of the slender neck) where, in the Sheraton,
the upper flower inlay was positioned. It's noticeable that the length of shoulder increases during the first
three decades of the 19th century; the early ones have very little shoulder and it often flares harmoniously into the
pediment. The bezels of early 19th century barometers go much closer to the edge of the case than they do even just a
decade later. If 1805/6 really is the date is the date of making of all six, it completely overthrows the accepted
wisdom regarding the dating of Sheraton shell barometers. But if you accept that argument, you would have a
problem with known working dates of other makers. The 1805 date of the cistern-tube stick barometers, many of them very
standardised instruments, has also been questioned stylistically and could be brought forward towards 1815.
So, if not the date of manufacture, what could 1805 mean? Could it refer the Ortellis
themselves, giving a slightly later message to potential clients that "we, the Ortellis, have been in business making/supplying
good barometers since 1805 (or 6!) and we are not one of those new arrivals who want to sell you inferior instruments."
(Modern dealers may also state when they were founded, in order to reassure clients about their expertise and honesty). So
why aren’t more extant Ortelli instruments signed with that date? Maybe the family was not that
organised! Maybe it was the idea of one of the business partners, not of all of them. Maybe the idea failed.
If you, as the customer, have just bought a new barometer, you wanted it to look new, not give the impression it was
not merely old-fashioned but might even be second-hand. Only now is antiquity a desirable
quality and most of us would love to have a date on our barometer! Especially if the style matched the
date!
The easiest solution to the problem is based on a piece of information that you will find on the
next page, where you'll read that in 1813 Peter Ortelli sold up his business to move to a 'distant' but unnamed
county. So one could date all the Macclesfield barometers, dated and undated, to around the 1813-1815 period and assume
that the 1805/6 dates refer to the establishment of one or more of the Ortellis in the business. However, a caveat
is thrown up by a couple of the 4-glass instruments (undated). Because of its likeness to the Lanhydrock
House barometer owned by the National Trust, Macc4 may have to be dated to around 1805. I get very conflicting
views on whether a four-glass barometer could be as early as 1805. Banfield has a number of examples of such instruments,
all by quality makers, which are dated to circa 1805-1807. Some experts put such instruments into the late
1810s-1820s period.
Comments on the dating puzzle on a postcard, please. Or, this being 2014, via the email
contact form on my homepage. They really will be gratefully received and incorporated.
AND SO TO LONDON AND OTHER TOWNS...
As we know the barometer making
community was based in London, and Banfield recorded Ortellis in London. It was time to see what could be gleaned from the
various records there. So click on the link below to the next page:The slightly less elusive Ortellis...
Contact
Go to: The slightly less elusive Ortellis of London, Buckingham etc
|
